The Airbus A380 is the largest passenger aircraft ever built, and it carries four engines. It does not, however, carry four thrust reversers. Only the two inboard engines, numbers two and three, are fitted with reversers. The outboard pair produce no reverse thrust at all after touchdown.
That makes the A380 unusual among four-engine airliners. The Boeing 747 and the earlier Airbus A340 both had reversers across all four positions. The A380 broke with that convention deliberately, and the reason has less to do with braking performance than with where those outboard engines physically sit.
It comes down to the wingspan
The A380's wing spans just under 80 metres, which was itself a design constraint driven by the 80-metre airport gate box that governs the largest category of stands and taxiways. Hang four engines under a wing that wide and the outer pair end up a very long way from the aircraft's centreline, and correspondingly close to the edge of the runway.
Runways are paved, but their margins are not always. Beyond the paved shoulder there is often gravel, compacted soil, grass and general debris. A thrust reverser works by redirecting fan air forward and outward, and doing that with an engine positioned near the runway edge blows a large volume of air across exactly that surface.
The result would be a significantly raised risk of foreign object damage. Stones, dirt and debris kicked up by the outboard reversers could be ingested by the engines themselves or thrown against the wings and fuselage. Removing the outboard reversers removes the mechanism that would create that debris field in the first place.
The weight argument helps too
There is a secondary benefit, and on an aircraft of the A380's scale it is not trivial. A thrust reverser assembly is a heavy piece of hardware: translating cowls, actuators, cascade vanes, hydraulic or electric drive systems and the associated control and indication wiring. Deleting two of them saves weight on every single flight the aircraft ever operates, and removes two systems that would otherwise need inspection, lubrication and periodic overhaul.
Any weight taken out of a structure that far outboard on the wing also has a favourable effect on wing bending loads, which is a meaningful consideration on the largest wing ever fitted to a commercial airliner.
Does it hurt stopping performance?
In practice, no. Thrust reversers are useful, but on a dry runway the overwhelming majority of an airliner's deceleration comes from wheel braking, with spoilers dumping lift onto the gear so those brakes can work. Certified landing distances for transport aircraft are calculated without credit for reverse thrust precisely because a reverser can fail.
Two reversers on an A380 still provide genuine benefit where it matters most: contaminated runways, where wheel braking is degraded and any additional retarding force reduces brake energy and brake wear. Airbus concluded that the two inboard units delivered enough of that benefit to make the outboard pair unnecessary, and nearly two decades of service have not challenged that judgement.

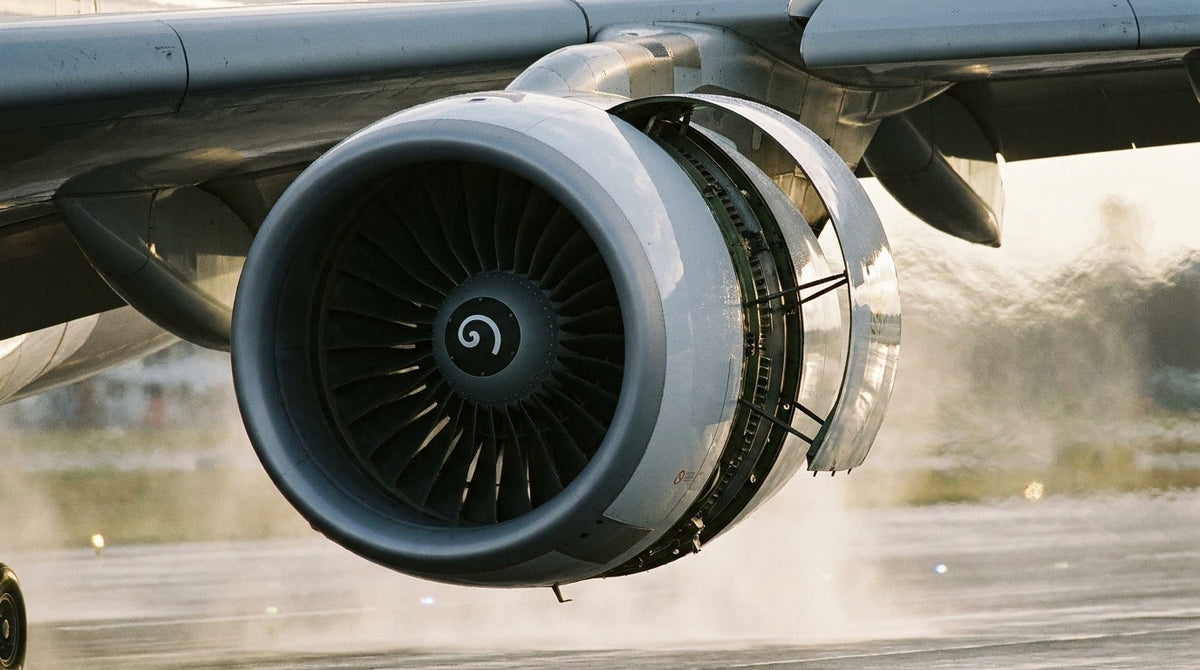

Sources: Simple Flying. Featured image: AI-generated by AviationShop. By Daniel Okafor.
