The jet engine is one of the most quietly remarkable machines humans have ever built. It hangs under a wing looking deceptively simple, yet it turns kerosene and air into enough thrust to lift a 300-tonne airliner off the ground and hold it at 38,000 feet for hours on end. Here is how it actually works, without the jargon.
The basic idea: suck, squeeze, bang, blow
Almost every jet engine follows the same four-stage cycle, often summed up as suck, squeeze, bang, blow. Air is drawn in at the front, compressed to a fraction of its original volume, mixed with fuel and ignited, and then blasted out of the back. Because the exhaust leaves faster than the air came in, the engine is pushed forward. That is Newton's third law in metal form: for every action there is an equal and opposite reaction.
Following the air through the engine
At the very front sits the fan, the huge bladed disc you can see when you look into a modern engine. Behind it, a series of compressor stages squeeze the air through progressively smaller blades, raising its pressure dramatically and heating it in the process. The high-pressure air then enters the combustion chamber, where fuel is sprayed in and burned continuously. The resulting hot, expanding gas rushes rearward through the turbine, a set of blades that spins like a windmill and, crucially, drives the compressor and fan at the front via a central shaft. Whatever energy is left over leaves through the exhaust nozzle as thrust.
Why modern engines are 'turbofans'
Early jets were turbojets, where nearly all the air passed through the hot core. Today's airliners use turbofans, and the difference is that enormous front fan. Most of the air it moves bypasses the core entirely, flowing around the outside in a cool, high-volume stream. This bypass air provides the majority of the thrust on a modern engine and does so far more efficiently and quietly than a pure jet. Engineers describe this with the bypass ratio, the proportion of bypass air to core air. Early engines had ratios near 1:1; the latest generation can exceed 10:1, which is a big reason new aircraft burn so much less fuel than their predecessors.
Bigger fans, better efficiency
That hunger for efficiency is why engine fans keep growing. The fan on a large widebody engine can measure more than three metres across, wider than the entire fuselage of a small regional jet. A bigger fan moves more air more gently, which improves fuel economy and cuts noise. It is also why engine cowlings have ballooned in size over the decades, sometimes forcing aircraft designers to redesign wings and landing gear to fit them.
Kept in check by computers
A modern engine is not controlled by the pilot shoving a lever directly. Instead, a system known as FADEC, or Full Authority Digital Engine Control, manages fuel flow, optimises performance and protects the engine from being over-stressed. The crew sets a thrust target and the computers work out precisely how to deliver it while keeping temperatures and pressures within safe limits.
Reliability you can count on
Perhaps the most impressive thing about jet engines is not their power but their dependability. Today's engines run for many thousands of hours between major overhauls, and an in-flight shutdown is an extremely rare event. That reliability is what allows twin-engine jets to fly long routes far from any airport, and it is the product of decades of metallurgy, precision manufacturing and relentless testing. The next time you watch an engine spool up on the taxiway, remember that you are looking at a continuously controlled explosion, tamed into one of the smoothest forms of transport ever devised.

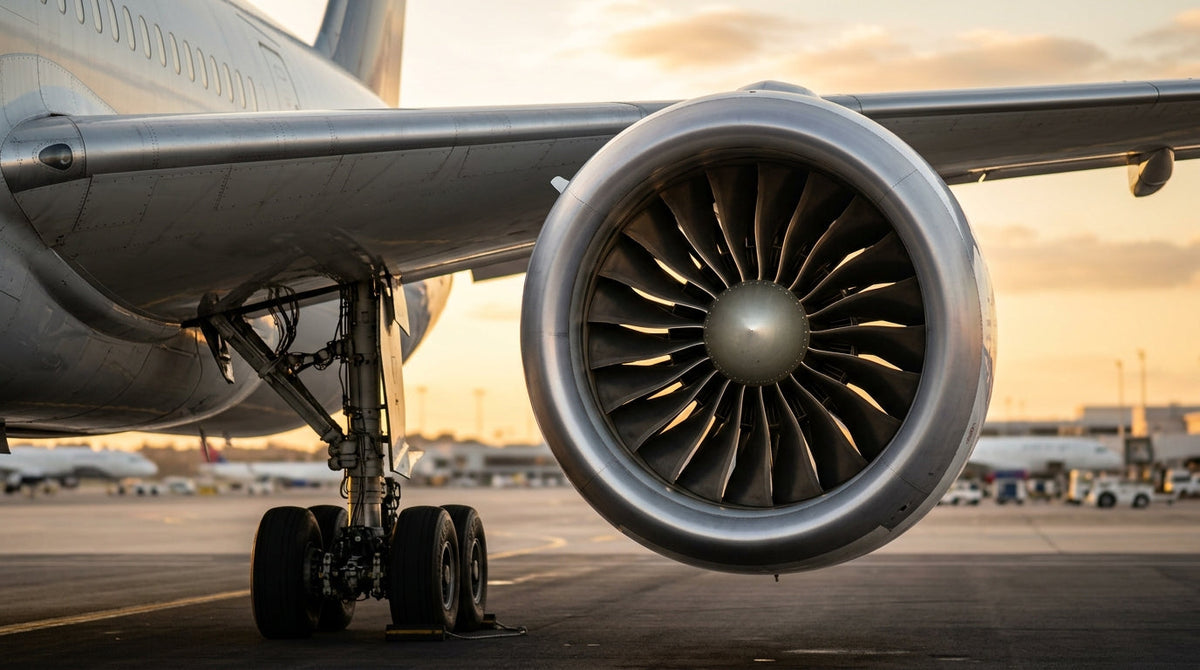

AviationShop Editorial Desk. Featured image: AI-generated by AviationShop. By Marco Bianchi.
